Hi-Level Adapter
Description4-channel audio signal converter
The converter guarantees a high quality output signal. Exceptionally durable, resistant to overheating.
(High frequency output = loudspeaker output)
(Low frequency output = amplifier output)
Technical data:
Proportions of transmission from 3.6: 1 V (in) max 14V Suitable for radios with output power: max. 40W (music) per channel 5W (music) min. for one channel
Connection: Input 8 loose wires
Output 4 gold-plated RCA inputs
INSTALLATION:
Set the potentiometer knobs to min.
Connect the wires
- green wire to the left speaker rear +
- green wire to the left speaker back -
- gray cable to the right speaker rear +
- gray cable to the right speaker back -
- white wire to the right speaker front -
- white cable to the right speaker back -
- yellow wire to the right speaker front -
- yellow wire to the right speaker back -
Turn on the radio by supplying the signal and external wires
Adjust the potentiometers to the right signal value.

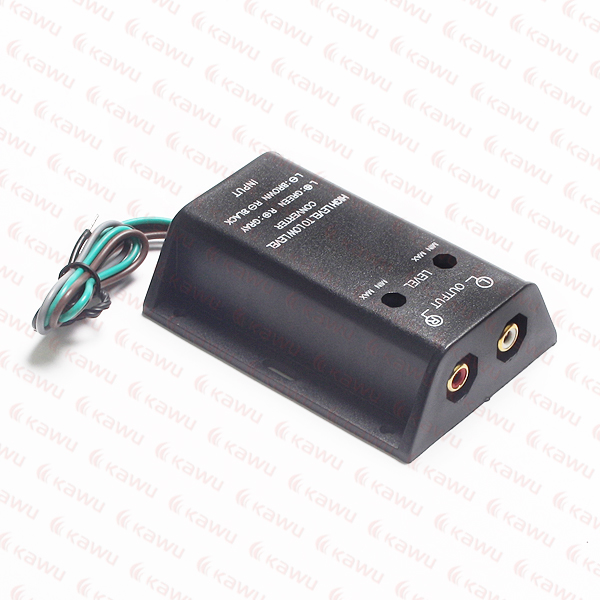

Hi low Convector, adjustable Extremly solid, heat-resistant case This converter permits the connection of car radios with a high-perfomance output High Out= loudspeaker) Eg. ISO Block >B< to signal input Low-in=phono input) of an amplifier
Technical data: Transmisson proportion from 3.6:1 V (In) max: 14V Suitable for a radio output: max 40Watt (music) per channel, min 5 Watt(music) Connections:Input 4x open ends,
output: 2x RCA, gold-plated
Assembling:
turn the potentiometer on min.
connect the wires
- green wire to left speaker _+
- brown wire to left speaker -
- grey wire to right speaker +
- black wire to right speaker -
Turn on the radiounit putting through the wires
output signal.
Adjust the signal by potentiometers
Description:
Hi-Level Adapter with remote
