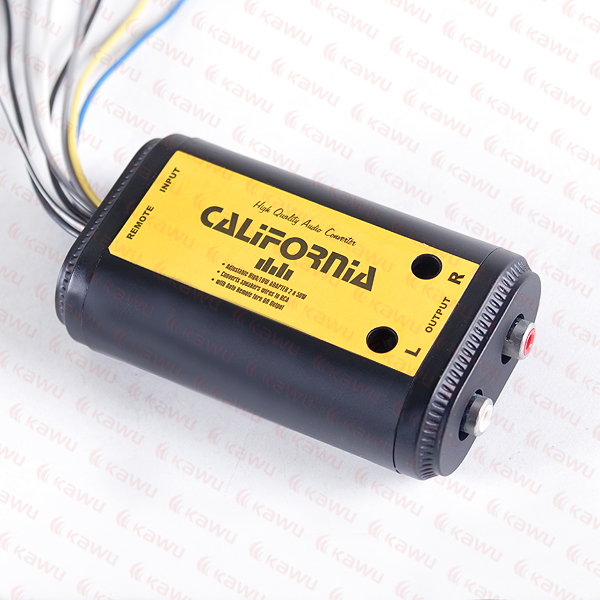

High-quality 2-channel speaker level converter to RCA level - input outpu2x50W / .2xRCA, adjustable signal . Connects head units (which are not equiped with RCA) to any external amplifier. It has a noise filter and separates the DC. It has a smooth adjustment of the output signal for each channel separately. Output REMOTE TURN ON / OFF - to switch the system on and off external power amplifier. Designed for radios up to 2x50W. 2 RCA outputs.
• allows you to connect an external amplifier to head units that do not have RCA
• Continuously variable output signal separately for the left and right channels
• output REMOTE TURN ON / OFF - to switch on and off the external amplifier
• head units designed for a maximum power output up to 2x50W
• 2 RCA (left and right channel)
CONNECTIONS DIAGRAM
• "L OUTPUT R” - RCA output for the left channel (L) and right ( R) RCA inputs connected
to the amplifier
• REMOTE " (power and output remote to wake and power off amplifier
( GROUND ) - black wire - ground power supply ( 12V )
- Connect the power supply to ground.
( 12V) - yellow wire - power supply (+ 12V) - Connect eg . power wire of head unit
or amplifier
( REMOTE OUT ) - blue wire - Remote output (+ 12V) to turn on / off the amplifier
- connect to the Remote input of the amplifier
• "INPUT" ( input - Speakers )
white wire (L +) - connected to the speaker output of the head unit
left channel positive polarity ( + )
black and white wire ( L ) - connected to the speaker output of the radio channel left the
negative pole ( - )
black wire (ground ) - ground - connect to ground to minimize interference
gray wire (R +) - connected to the speaker output of the radio for the right channel of
positive polarity ( + )
gray and black ( R-) - connected to the speaker output of the radio for the right channel of
the negative polarity (-)
INSTALLATION
Set the potentiometers to min.
Connect the wires according to the wiring diagram
Turn on the radio to provide the external signals
Adjust the potentiometers.
